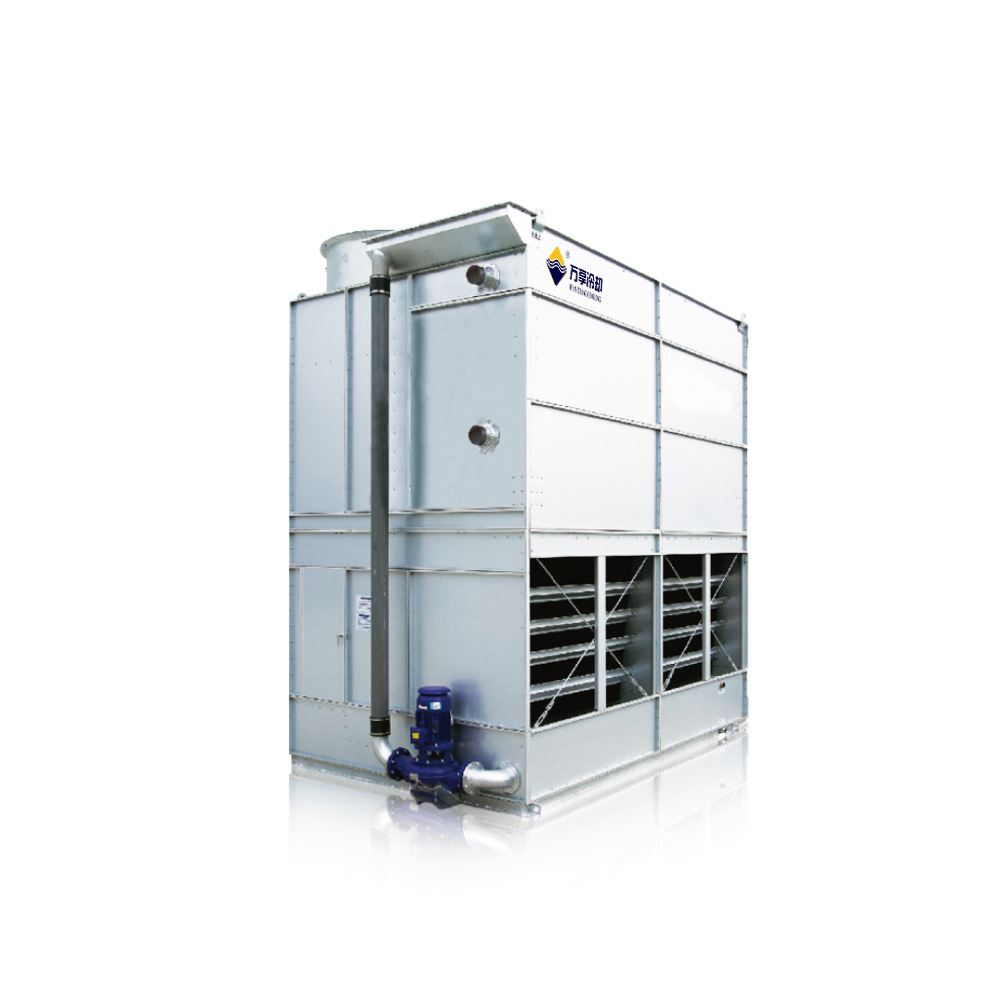

FZH mixed flow evaporative cooling

FZH mixed flow evaporative cooling
Product details

Model: FZH-022-FZH-3164HG

Rated power: 4.5kw --66.5kw

Voltage: 380V/50HZ

Nominal operating condition heat dissipation: 330kW -6000kW

Length: 1850mm -6830mm

Width: 2250mm -3620mm

Height: 4150mm -5181mm



Product principle



The high-temperature gaseous refrigerant inside the      H series evaporative condenser coil exchanges heat with the spray water and air outside the coil, and the refrigerant inside the tube gradually condenses from gaseous to liquid. The super strong wind force of the induced draft fan completely covers the surface of the coil with sprayed water, and the heat transfer effect is significantly improved by the water taking advantage of the wind force. After the spray water and air absorb heat, the temperature increases, and some of the water changes from liquid to steam. The latent heat of evaporation carries away a large amount of heat, and the water in the hot air is intercepted by the water blocking plate and collected in the PVC heat exchange layer. The water in the PVC heat exchange layer is cooled by the flowing air, the temperature decreases, enters the collection tank, and is then pumped into the spray water system by the circulating water pump to continue the circulation. The water lost to the air is replenished by the water level regulator.

Product Features



The     H-type evaporative condenser adopts a design method of wind and water in the same direction, which makes the heat dissipation of the internal coils more thorough. Combined with the secondary heat dissipation of the spray water flowing through the PVC packing by the wind, it achieves efficient heat transfer of the evaporative condenser, and at the same time, the wind and water in the same direction minimize the formation of pipe wall scaling and dry spots. Suitable for places without good double-sided air intake.
